Linear Regression

A Practical Guide to Machine Learning with TensorFlow 2.0 & Keras by Vadim Karpusenko

import tensorflow as tf

tf.random.uniform.__doc__

'Outputs random values from a uniform distribution.\n\n  The generated values follow a uniform distribution in the range\n  `[minval, maxval)`. The lower bound `minval` is included in the range, while\n  the upper bound `maxval` is excluded.\n\n  For floats, the default range is `[0, 1)`.  For ints, at least `maxval` must\n  be specified explicitly.\n\n  In the integer case, the random integers are slightly biased unless\n  `maxval - minval` is an exact power of two.  The bias is small for values of\n  `maxval - minval` significantly smaller than the range of the output (either\n  `2**32` or `2**64`).\n\n  Examples:\n\n  >>> tf.random.uniform(shape=[2])\n  <tf.Tensor: shape=(2,), dtype=float32, numpy=array([..., ...], dtype=float32)>\n  >>> tf.random.uniform(shape=[], minval=-1., maxval=0.)\n  <tf.Tensor: shape=(), dtype=float32, numpy=-...>\n  >>> tf.random.uniform(shape=[], minval=5, maxval=10, dtype=tf.int64)\n  <tf.Tensor: shape=(), dtype=int64, numpy=...>\n\n  The `seed` argument produces a deterministic sequence of tensors across\n  multiple calls. To repeat that sequence, use `tf.random.set_seed`:\n\n  >>> tf.random.set_seed(5)\n  >>> tf.random.uniform(shape=[], maxval=3, dtype=tf.int32, seed=10)\n  <tf.Tensor: shape=(), dtype=int32, numpy=2>\n  >>> tf.random.uniform(shape=[], maxval=3, dtype=tf.int32, seed=10)\n  <tf.Tensor: shape=(), dtype=int32, numpy=0>\n  >>> tf.random.set_seed(5)\n  >>> tf.random.uniform(shape=[], maxval=3, dtype=tf.int32, seed=10)\n  <tf.Tensor: shape=(), dtype=int32, numpy=2>\n  >>> tf.random.uniform(shape=[], maxval=3, dtype=tf.int32, seed=10)\n  <tf.Tensor: shape=(), dtype=int32, numpy=0>\n\n  Without `tf.random.set_seed` but with a `seed` argument is specified, small\n  changes to function graphs or previously executed operations will change the\n  returned value. See `tf.random.set_seed` for details.\n\n  Args:\n    shape: A 1-D integer Tensor or Python array. The shape of the output tensor.\n    minval: A Tensor or Python value of type `dtype`, broadcastable with\n      `shape` (for integer types, broadcasting is not supported, so it needs to\n      be a scalar). The lower bound on the range of random values to generate\n      (inclusive).  Defaults to 0.\n    maxval: A Tensor or Python value of type `dtype`, broadcastable with\n      `shape` (for integer types, broadcasting is not supported, so it needs to\n      be a scalar). The upper bound on the range of random values to generate\n      (exclusive). Defaults to 1 if `dtype` is floating point.\n    dtype: The type of the output: `float16`, `bfloat16`, `float32`, `float64`,\n      `int32`, or `int64`. Defaults to `float32`.\n    seed: A Python integer. Used in combination with `tf.random.set_seed` to\n      create a reproducible sequence of tensors across multiple calls.\n    name: A name for the operation (optional).\n\n  Returns:\n    A tensor of the specified shape filled with random uniform values.\n\n  Raises:\n    ValueError: If `dtype` is integral and `maxval` is not specified.\n  '

A Tensor is an Array/ Matrix.

tf.random.uniform([1])

<tf.Tensor: shape=(1,), dtype=float32, numpy=array([0.6939484], dtype=float32)>

Transform a Tensor representation into a numpy representation

var = tf.random.uniform([1])
print(var.numpy())

[0.22036767]

Tensorflow is trying to optimise the utilisation of the hardware. Tensorflow keeps track of operations and how they’re running on the GPU. Helping the most compute intesive parts - using pre built libraries for these operations instead.

%matplotlib inline
import matplotlib.pyplot as plt
from tensorflow.keras import Model

Let’s create noisy data (100 points) in form of m * X + b = Y:

def make_noisy_data(w=0.1, b=0.3, n=100):
    x = tf.random.uniform(shape=(n, ))
    noise = tf.random.normal(shape=(len(x), ), stddev=0.01)
    y = w * x + b + noise
    return x, y

X, Y = make_noisy_data()

X

<tf.Tensor: shape=(100,), dtype=float32, numpy=
array([0.48657072, 0.17176831, 0.21938956, 0.36745334, 0.05798638,
       0.67751   , 0.57760847, 0.8738278 , 0.88572407, 0.02748132,
       0.817448  , 0.39941168, 0.9407468 , 0.60550606, 0.17443848,
       0.20711946, 0.71620786, 0.22708344, 0.5322207 , 0.23200595,
       0.32317913, 0.23953998, 0.5441227 , 0.90151274, 0.22809005,
       0.9239464 , 0.65238607, 0.35112786, 0.13863361, 0.84289145,
       0.7850299 , 0.62042785, 0.5014287 , 0.9779576 , 0.06559253,
       0.96727073, 0.31404448, 0.8697041 , 0.4653598 , 0.37288296,
       0.3151381 , 0.75571716, 0.73676896, 0.8243098 , 0.09441626,
       0.26089752, 0.06647301, 0.9723432 , 0.29071236, 0.7548965 ,
       0.00323939, 0.04732835, 0.9694873 , 0.7357254 , 0.5757927 ,
       0.31435513, 0.34669054, 0.01069772, 0.22928381, 0.08957899,
       0.34720016, 0.4444213 , 0.6066693 , 0.6556382 , 0.48066437,
       0.9665227 , 0.248196  , 0.4280517 , 0.48154628, 0.01047492,
       0.19911015, 0.59418726, 0.30669034, 0.37508214, 0.5223563 ,
       0.28211403, 0.36512446, 0.06428576, 0.8134204 , 0.6585419 ,
       0.7452884 , 0.52330244, 0.7090163 , 0.37823677, 0.11238146,
       0.6284449 , 0.7901399 , 0.09879732, 0.35319185, 0.72735655,
       0.9744847 , 0.78562665, 0.5508317 , 0.55949676, 0.72342706,
       0.40936482, 0.8662355 , 0.17356515, 0.6434809 , 0.27166295],
      dtype=float32)>

The distribution is more or less equal (uniform)

plt.plot(X, Y, 'go')
plt.plot(X, 0.1*X+0.3)

plt.plot(X.numpy(), Y.numpy(), "bo")

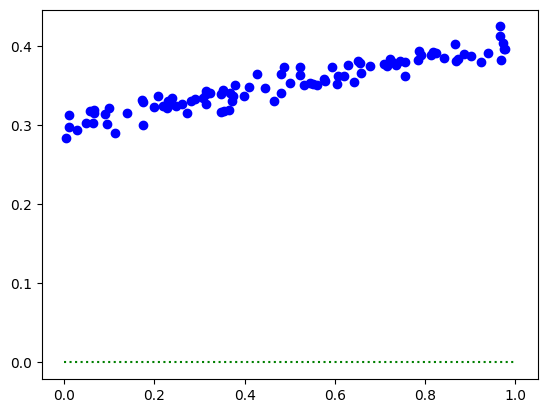

w = tf.Variable(0.)
b = tf.Variable(0.)
plt.plot(X.numpy(), Y.numpy(), "bo")
plt.plot([0, 1], [w*0+b, w*1+b], "g:")  # Show linear regression line according to true w=0.1, b=0.3

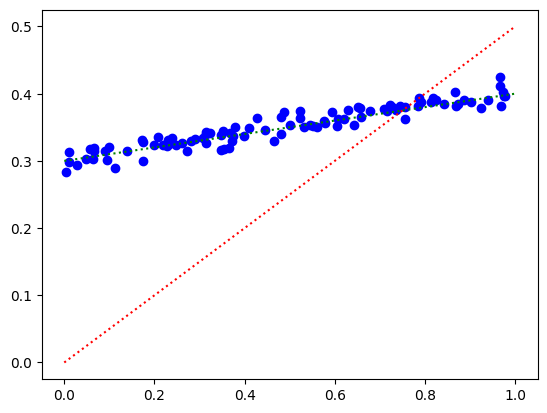

w_guess = 0.5
b_guess = 0.0
plt.plot(X.numpy(), Y.numpy(), "bo")
plt.plot([0, 1], [0.1*0+0.3, 0.1*1+0.3], "g:")
plt.plot([0, 1], [0*w_guess+b_guess, 1*w_guess+b_guess], "r:")
plt.show()

The problem we are trying to solve is funding the correlation, fitting the red line to our green line. Getting the red line to fit the optimal solution (the green line point)

We need to find the distance between our red line and the green line. We need to find our error - how far are we from correct answer.

def predict(x):
    y = w * x + b
    return y

Finding the loss (distance between the line and a point).

Find distance between prediction of Y and true value of Y

def mean_squared_error(y_pred, y_true):
    return tf.reduce_mean(tf.square(y_pred - y_true))

loss = mean_squared_error(predict(X), Y)
print("Starting loss", loss.numpy())

Starting loss 0.124257386

The loss is significant 0.1258082

w_guess = 0.1
b_guess = 0.3
print(mean_squared_error(predict(X), Y))

tf.Tensor(0.124257386, shape=(), dtype=float32)

Minimising the loss function

We could do this by hand, changing the weights and biases, twiddling them ourselves…however that would take forever! So we need an automatic solution with differentiation

We define the learning_rate. We want our steps to be quite small to prevent overshooting the Gradient Descent (we want to avoid jumping out of our local minima).

This will be an iterative method to get us close as we can. - Calculate current loss function - Decide what direction to move - Move in that direction

GradientTape() is a Tensorflow operation where TF keeps track of mathematical operations

learning_rate = 0.05
steps = 200

for i in range(steps):

    with tf.GradientTape() as tape:
        predictions = predict(X)
        loss = mean_squared_error(predictions, Y)

    gradients = tape.gradient(loss, [w, b])

    w.assign_sub(gradients[0] * learning_rate)
    b.assign_sub(gradients[1] * learning_rate)

    if i % 20 == 0:
        print("Step %d, Loss %f" % (i, loss.numpy()))

Step 0, Loss 0.124257
Step 20, Loss 0.000795
Step 40, Loss 0.000184
Step 60, Loss 0.000162
Step 80, Loss 0.000148
Step 100, Loss 0.000137
Step 120, Loss 0.000128
Step 140, Loss 0.000121
Step 160, Loss 0.000116
Step 180, Loss 0.000112

Matching our original values makes our loss far far lower 0.000112. We are closer to our ideal solution.

gradients

[<tf.Tensor: shape=(), dtype=float32, numpy=0.0014718910679221153>,
 <tf.Tensor: shape=(), dtype=float32, numpy=-0.000763709656894207>]

w

<tf.Variable 'Variable:0' shape=() dtype=float32, numpy=0.11502755433320999>

b

<tf.Variable 'Variable:0' shape=() dtype=float32, numpy=0.29490748047828674>

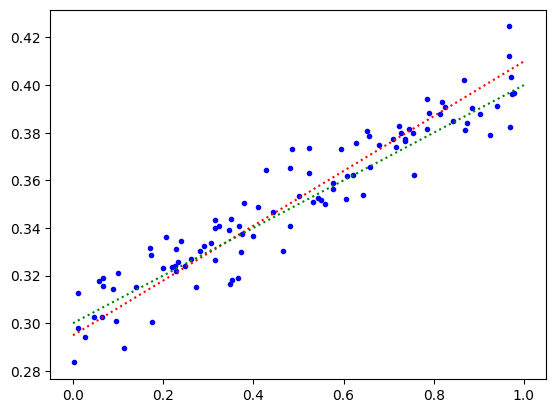

w_true = 0.1
b_true = 0.3
plt.plot(X, Y, "b.")
plt.plot([0, 1], [0*w+b, 1*w+b], "r:")
plt.plot([0, 1], [0*w_true+b_true, 1*w_true+b_true], "g:")
plt.show()

import numpy as np
from mpl_toolkits.mplot3d import Axes3D

ws = np.linspace(-1, 1)
bs = np.linspace(-1, 1)
w_mesh, b_mesh = np.meshgrid(ws, bs)


def loss_for_values(w, b):
    y = w * X + b
    loss = mean_squared_error(y, Y)
    return loss


zs = np.array([
    loss_for_values(w, b) for (w, b) in zip(np.ravel(w_mesh), np.ravel(b_mesh))
])
z_mesh = zs.reshape(w_mesh.shape)

fig = plt.figure(figsize=(12, 12))
ax = fig.add_subplot(111, projection='3d')
ax.plot_surface(w_mesh, b_mesh, z_mesh, color='b', alpha=0.06)

w = tf.Variable(-.5)
b = tf.Variable(-.75)

history = []

for i in range(steps):
    with tf.GradientTape() as tape:
        predictions = predict(X)
        loss = mean_squared_error(predictions, Y)
    gradients = tape.gradient(loss, [w, b])
    history.append((w.numpy(), b.numpy(), loss.numpy()))
    w.assign_sub(gradients[0] * learning_rate)
    b.assign_sub(gradients[1] * learning_rate)

# Plot the trajectory
ax.plot([h[0] for h in history], [h[1] for h in history],
        [h[2] for h in history],
        marker='o')

ax.set_xlabel('w', fontsize=18, labelpad=20)
ax.set_ylabel('b', fontsize=18, labelpad=20)
ax.set_zlabel('loss', fontsize=18, labelpad=20)

ax.view_init(elev=22, azim=25)
plt.show()
